超高阻隔单向拉伸聚乙烯膜

超高阻隔单向拉伸聚乙烯膜 (MDOPE-S)是一款新型的超高阻隔环保材料,通过使用镀铝MDOPE提高单一材质复合膜的阻隔性能,实现替代铝箔 。

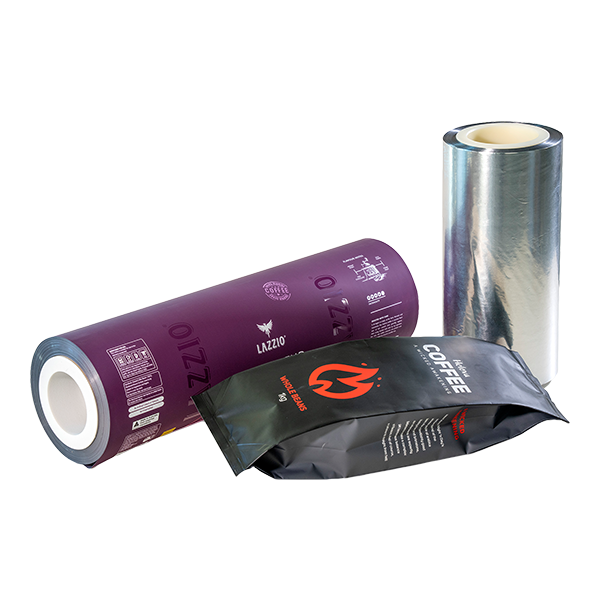

Display of three different packaging materials: purple cylindrical coffee packaging bag, silver metallic cling film and black plastic coffee packaging bag

拓普斯的MDOPE-S具有超高的阻隔性能,可实现氧气透过率低于0.1,水蒸气透过率低于0.4,可有效延长包装内容物的保质期.

产品性能

  • 优异的抗拉伸性能 ·100%可回收
  • 优异的平整度和铝层附着力
  • 优异的阻隔性能和保香性,水蒸气透过率(WVTR)<0.4 g/m²/24h;氧气透过率(OTR)<0.1 cc/m²-24h-0.1MPa
  • 常规厚度:25um
  • 可选宽度:500-2200mm
  • 材料符合EC及FDA 关于与食品直接接触包装材料的法规要求。
  • 可加工性:适用于预制袋和V/HFFS包装生产线

*Unless otherwise stated, all performance is tested under standard laboratory condition: 23 ± 2 º C; 50 ± 5% RH.In relevant cases, testing is base on international testing standards.

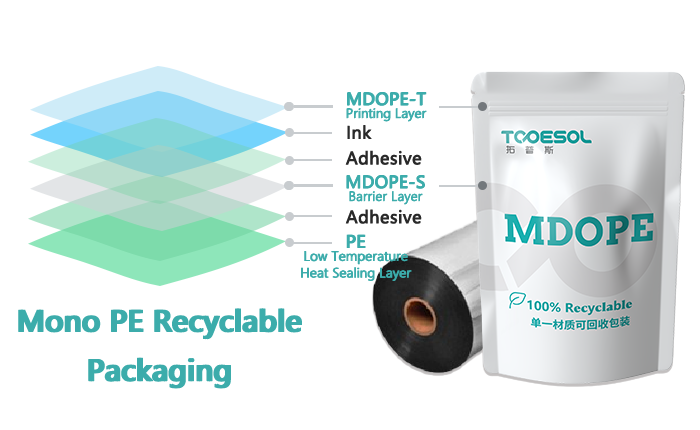

Detailed structure of MDOPE-S film, showing the printing layer, ink layer, adhesive layer, PE low temperature layer and heat seal layer

产品应用

  • 适用于单一材质包装的阻隔层,可以替代铝箔
  • 适用于阻隔性能和货架期要求高的产品包装
  • 可用于常温及冷冻保存包装

Product Photo

产品特点

超高阻隔性能,替代铝箔、镀铝PET

优异的机械性能

具有高拉伸强度、挺度,MD方向直线易撕等优异性能。

优异的平整度和铝层附着力

单向拉伸膜表面平整光滑,为镀铝提供了良好的基底,能获得均匀、致密、光亮的铝层。

优异的阻隔性能

具有超高的阻隔性能,可实现氧气透过率低于0.1,水蒸气透过率低于0.4,能有效延长包装内容物的保质期.

行业适配性广

可用于常温及冷冻保存包装。

环保可持续

相比铝箔或更厚的复合结构,镀铝单向拉伸聚乙烯膜能以更薄的厚度提供良好的阻隔性和强度,有助于减轻包装重量,降低运输成本和材料消耗。

Production Flow

Film enters the MDO stretching unit and is evenly preheated to a required temperature.

矩形 1587@1x

Performance Comparison of Different Materials

image@1x

应用市场

相关产品

Transparent film roll and two orange and blue Spout Pouches are made of MDOPE, highlighting the 100% recyclable packaging

MDOPE-T​ FILM

MDOPE-T Film(Common) is a rigid film that provides excellent package stability with a straight and easy tear in machine direction.

TOPESOL's transparent MDOPE packaging material and stand-up pouch for laundry detergent

MDOPE-E FILM

A high modulus and use of high-quality resins ensure MDOPE-E Film (High Barrier) grade’s machinability on any printing and converting line

Various packaging products are displayed: Purina gray cat flat bottom bag, white flat bottom bag, red spout pouch. Aluminum foil roll film

More+

High stiffness, heat resistance, easy tearing at MD and high transparency. It is suitable for the printing layer of mono PE packaging replacing PET

COMMON MDOPE FILM

Common PE films perform high strength, high stiffness, heat resistance, easy tearing at MD and high transparency. It is suitable for the printing layer of mono PE packaging replacing PET.

Thickness:20-40um
Width:500-2200mm

HIGH BARRIER MDOPE FILM(THE FILM ITSELF HAS A HIGH BARRIER)

High barrier MDOPE has coating barrier layer or extrusion barrier layer, achieving excellent oxygen barrier and aroma preservation.

Thickness:20-40um
Width:500-2200mm

EXTREMELY HIGH BARRIER MDOFE FILM(INSTEAD OF ALUMINUM FOIL)

Extremely high barrier MDOPE film performs excellent water vapor barrier property. Special formula films enhance both oxygen barrier and aroma preservation. It is available for product packaging with higher requirement on shelf life.

Thickness:21-40um
Width:500-2200mm
